Description:
Cold Shrink 3 cores cable Breakout (1~36kV) Used to cable termination and joint insulation protection, are a series of open-ended molded silicone rubber sealing assemblies that are factory expanded and mounted on removable inner supporting plastic cores.
Breakout Boots Applicable:
suitable to the voltage level 12/20kV, 18/20kV single-core, multi-core cross-linked power cable connection, with function of the seal, insulation, stress evacuation.Which are designed as a quick and reliable method to protect and seal the crutch area of 3 core polymeric and paper insulated power cables. The silicone moulding provides excellent thermal stability and weathering protection. They can be installed quickly and easily without the need for special tools or heat.
20KV multi cores series spec and model
| Voltage | Model | Suitable cable section area(mm²) | Cable core insulation OD(mm²) |
| For 12/20KV 3cores indoor/outdoor terminators (N/W) and middle connector(J) | LSN/W/J-3/1 | 35~70 | 19.3~22.1 |
| LSN/W/J-3/2 | 95~185 | 23.7~28.4 |
| LSN/W/J-3/3 | 240~400 | 30.7~35.6 |
| LSN/W/J-3/4 | 500~800 | |
Cold Shrink 3 cores cable Breakout (1~36kV) FEATURES & BENEFITS
1.Quickly and east installation using no heat source or special tools
2.Excellent resistance to UV, Ozone and moisture
3.Excellent thermal stability
4.Range covers all popular cable sizes available
5.Standard colour: Grey
6.Semi-conductivity version also available

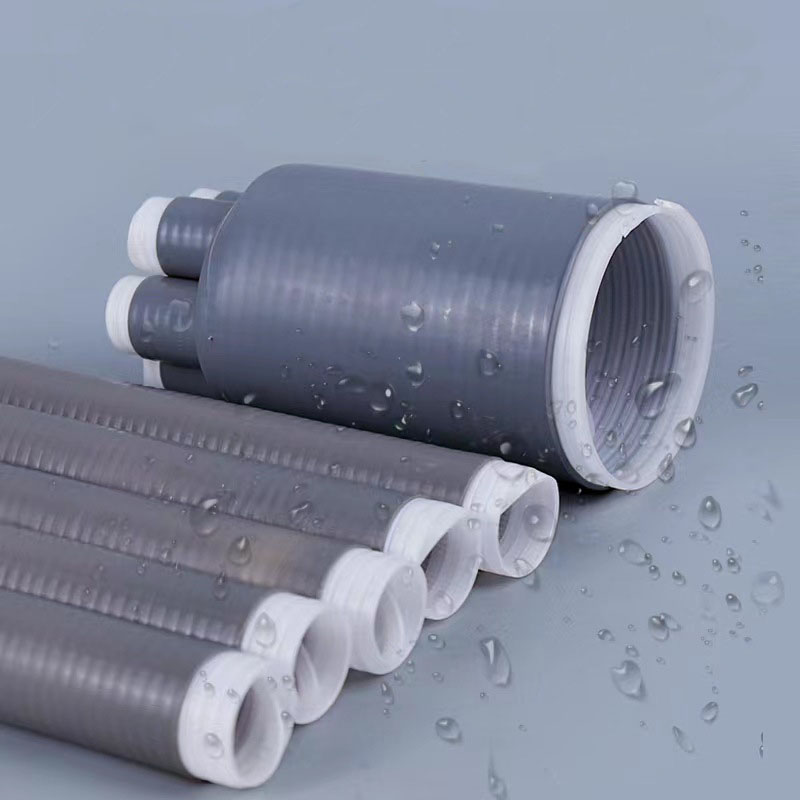

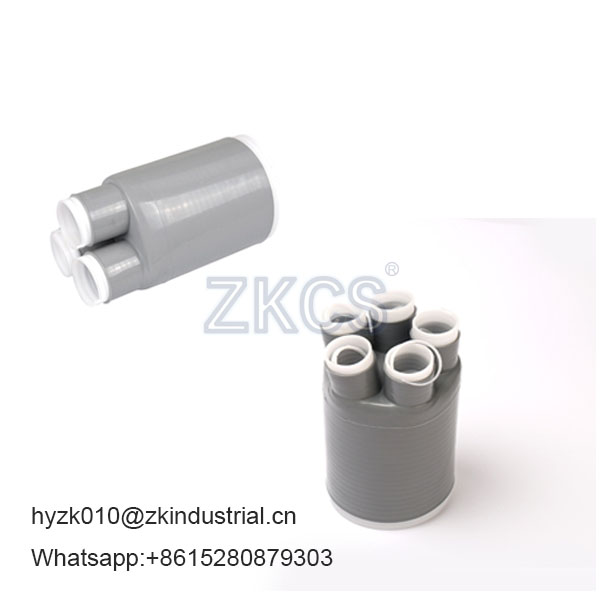

Cable Rubber Boot Reference picture:
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
