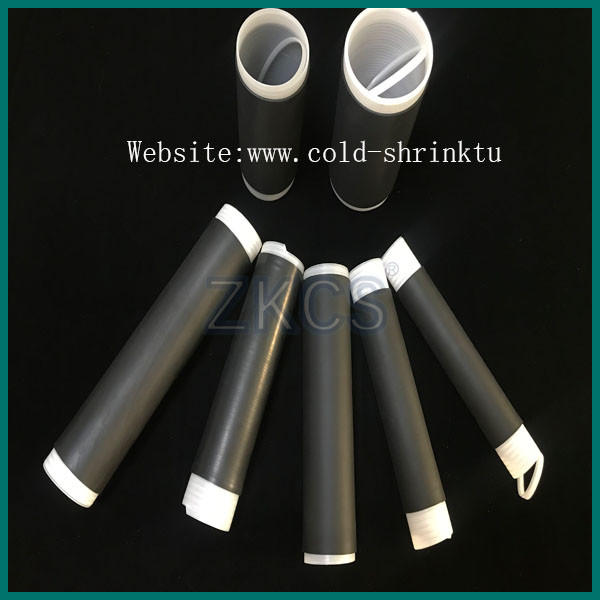

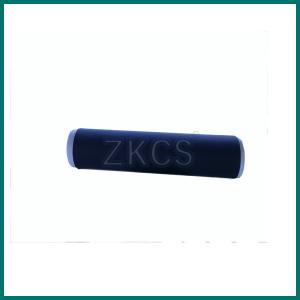

40mm Diameter EPDM Cold Shrink Tube For Telecommunication Base Stations
■ Applicable scope
Silicon cold shrink tube: It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector.
Rubber Typical Properties:
| Properties | Test Method | Typical Value |
| Color | / | Black |
| Ultimate Tensile | ASTM D412-75 | 9.0MPa |
| Ultimate Elongation | ASTM D412-75 | 750% |
| Tear Resistance | ASTM D624C-73 | 30KN/m |
| Fungus Resistance | ASTM G21 28 days exposure | No Growth |
| Dielectric Strength | ASTM D149-75 @1.75 Original | 21KV/m |
| 7days in water at 90℃ | 20.5KV/m |
| Volume resistance | ASTM D257 | 3.4×1015Ohm.cm |
All values are averages and are not intended for specification purposes. ref only!
For different products, please contact for details!
Features of Cold Shrink Tube:
- Dominance support strength and toughness, to ensure that the cable installation of the strip does not appear broken phenomenon;
- Dominance low temperature brittleness, can be installed in the Arctic area, no broken;
- Dominance high temperature resistance, can be in the hot area, product no deformation;
- Meet ROSH 2.0 standard;
- Strict quality control, all use fresh raw materials, reliable quality;
FAQ
1. What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
2. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
