Product name:

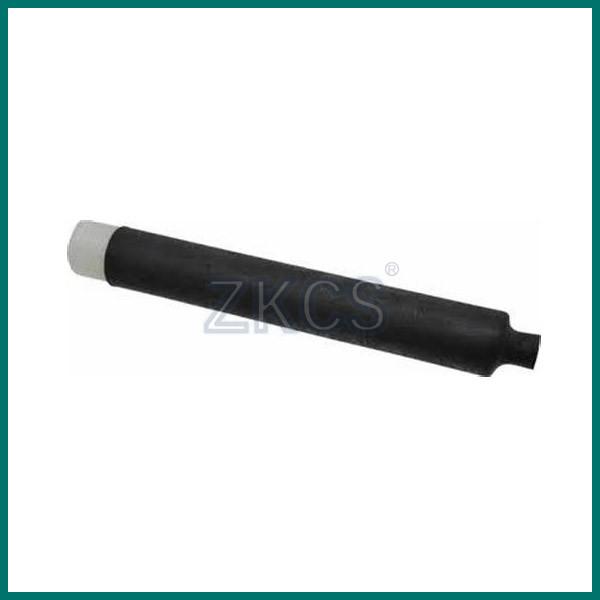

Insulation EPDM Cold Shrink Tube For Power Cable Accessories Connect Cable
Description:
Hengyang ZK industrial has been engaged with cold shrink line for many years,which has safer business
way and good quality of products,we will be your frist choice for cold shrink material supplier.
| 1:Simple installation,no special tools required |
| 2:No torches or heat required |
| 3:Good thermal stability |
| 4:Seals tight retain its resiliency and pressure even afte prolonged years of ageing and exposure |
| 5:Excellent wet elctrical properties |
| 6:Improved tough rubber formulation to withstand rough backfilling |
| 7:Waterproof resists |
| 8:Resists UV zone |
| 9:resists acidss and alkalis |
| 10:Accommodates a wide range of cable sizes |
Introduction:
EPDM Cold Shrink Tubes are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.
| Material technical parameters: |
| No | Items | Test method | Unit | Test standard | Remarks |
| 1 | Hardness (Shore A) | GB/T 531.1-2009 | Shore A | 43±5 | |
| 2 | Tensile strength | GB/T 528-2009 | Mpa | 8±3 | |
| 3 | Break elongation | GB/T 528-2009 | % | 800±200 | |
| 4 | Tear strength | GB/T 529-2008 | kN/mm | 38±5 | |
| 5 | Volume resistivity | GB/T 2439-2001 | Ω•cm | ≥1013 | |
| 6 | dielectric strength | GB/T 1695-2005 | MV/m | ≥18 | |
| 7 | dielectric Constant(50Hz) | GB/T 1693-2007 | / | ≤8 |
|
Here you can find cold shrink tubes made of different materials for base stations, silicone, EPDM and Silicone with Bilateral Built-in Mastic. They can be used to connect cable to cable or connect cable to device for waterproofing. 1/4" , 3/8" , 1/2" s, 1/2", 7/8”, LMR195 coaxial cable to 4.3-10, 4.1-9.5, 7/16DIN,
