No Deformation Welding Type PP PE Plastic Spiral Tube For Cold Shrink Products.
■ Plastic Spiral Tubing Applicable scope:
Spiral tubes: used as supporting assistant assemble tool for cold shrink products, which applied in electrical power industry, telecommunication industry or other tool product handle, bicycle handle etc.
■ 3 types of spiraling technology:
auto-buckled type, hot air welding type, ultrasonic welding type by 2 section profile types.
Spiral Plastic Hose Specification:
| No | Standard inner diameter (mm) | Length (mm) |
| Standard size | Inner Diameter sizes: Ø15,25, 32,34,42,46,52,60,65,70,75,85,94,105,120,135,150 | From 70 to 1000, According to usage |
| Remark: Accepted Un-standard spec. customized sizes |
| No | Spec(width*thickness) | Application Field |
| 1 | 6*1.5mm | Standard part(suitable for 1kv cable accessories) |
| 2 | 6*3.6mm | Suitable for 35KV 3 cores termination |
| 3 | 7.0*2.0mm | Standard part(suitable for 10KV cable accessories) |
| 4 | 7.0*2.2mm | Suitable for 10KV terminations |
| | | |
Plastic Spiral Pipe Features:
- Good support strength and toughness, to ensure that the cable installation of the strip does not appear broken phenomenon;
- Good low temperature brittleness, can be installed in the Arctic area, no broken;
- Good high temperature resistance, can be in the hot area, product no deformation;
- Meet ROSH 2.0 standard;
- Strict quality control, all use fresh raw materials, reliable quality;

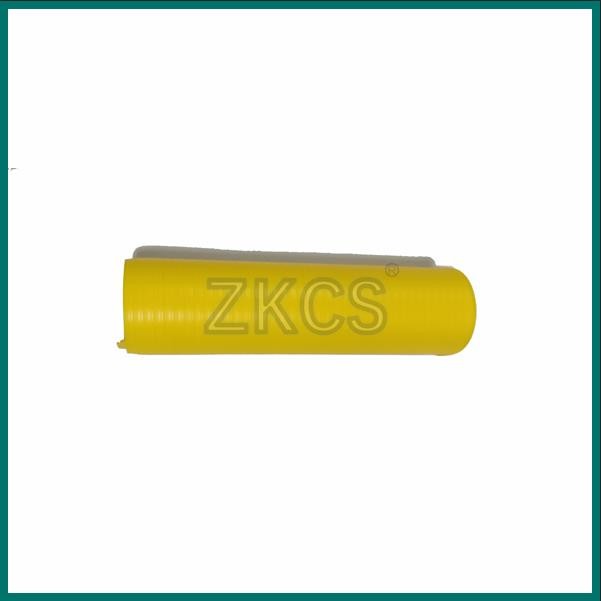

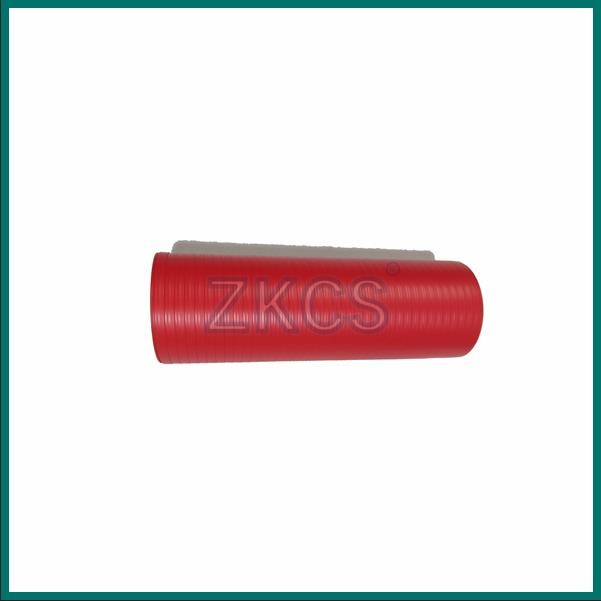

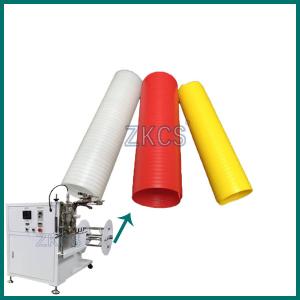

Spiral Plastic Hose picture:
FAQ
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
3. What can you buy from us?
cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
